We would also be studying MDM with the help of examples in our succeeding articles. Moment Distribution Method Example Read Full Article What is the Moment Distribution Method The moment distribution method is practical for analysing statically indeterminate beams and rigid frames. With this, we come to the end of our step by step procedure for “Moment Distribution method”. M1, M2 and M3 are the distribution moments. The Moment Distribution Method is a quite powerful hand method of structural analysis, in which the solution is obtained iteratively without even formulating the equations for the unknowns. Total stiffness of the member is given by,Īnd the total moment applied at the joint ‘O’Īre the distribution factors for OA, OB and OC respectively. Now, we shall discuss “Distribution Factor” which is very important while carrying out calculations using Moment Distribution Method. An algebraic method of moment distribution for the analysis of forces and displacements in redundant structures is presented. /rebates/2fcourse2fmoment-distribution-method-comprehensive-examples-concepts2f&. Example Fined the moment at each side of joint A (MAB. K = Moment of inertia/length of the member = I/L Unlike the slope deflection method, the moment- distribution method does not require the solution. One end hinged and the other end fixed, COF = ½įor both ends hinged, COF = 0 Stiffness (k) Carry Over factorĬOF = Moment induced at one end/Moment applied at the other end This process of distribution and carry over is continued till the unbalanced moment at the joints become zero or negligible.

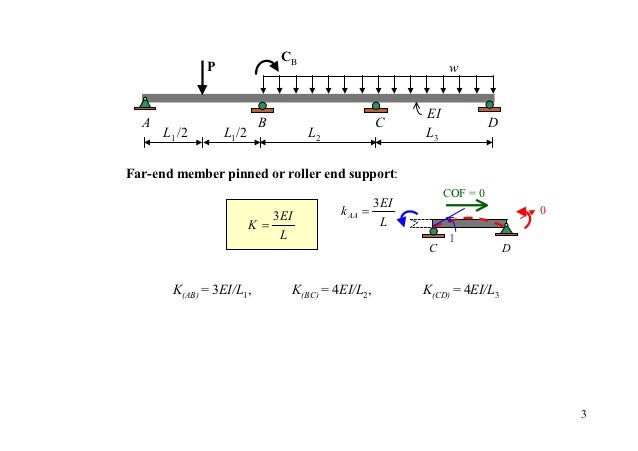

For the continuous beam shown in figure,Calculate the support moments distribution method. Step three:Ī part of this moment is carried over to the other end of the member and the carry over moment is computed. 3.2.1 NUMERICAL EXAMPLES ON( CONTINUOUS BEAMS ).
Moment Distribution Method diagram Step two:įixidity at the joint is released and the balancing moment at the joints is distributed to various members depending upon their thickness. The moment distribution methodsometimes named the Cross method after its inventor Hardy Crossplays a special role in structural engineering. Calculation of fixed end moments is to be done. Initially all the members are assumed to be fixed. Step by Step procedure for Moment Distribution Method Step One:
